What is pedestrian proximity detection?

Pedestrian proximity detection is an industrial collision-avoidance system called ZoneSafe Vehicle-to-Person Alert that creates a 360-degree safety zone around moving workplace vehicles. Using Active RFID antennas and wearable VibraTags, it protects industrial workers by triggering instant audible, visual, and haptic alerts before vehicle-to-person collisions can ever occur.
PEDESTRIAN PROXIMITY DETECTION QUICK SPECIFICATIONS

Vehicle-to-Person Alert details



Technology Type Active RFID
Power Supply 12V-48V DC
Warning & Alert Types Audible and visual (in-cab) – Haptic vibration feedback (VibraTag)
IP Rating IP65 In-cab control unit – IP67 Antenna Sensor – IP67 VibraTag
Detection Range 3m to 10m

Vehicle-to-Person Alert: Setting the standard in pedestrian proximity detection

Ideal for mixed fleets or single vehicles such as forklift trucks, shovel loaders, excavators, or reach stackers, the pedestrian proximity detection system uses trusted RFID technology to detect pedestrian workers around moving vehicles even when they can’t be seen.

  • Uses RFID technology to detect pedestrian workers.
  • System fits any type of heavy plant & industrial machinery.
  • Significantly reduces the risk of vehicle-pedestrian collisions.
  • Trusted worldwide and used in many different sectors.
shovel-loader-image-with-pedestrian-proximity-detection-zone-image-for-proximity-warning-systems-for-waste-and-recycling-webpage

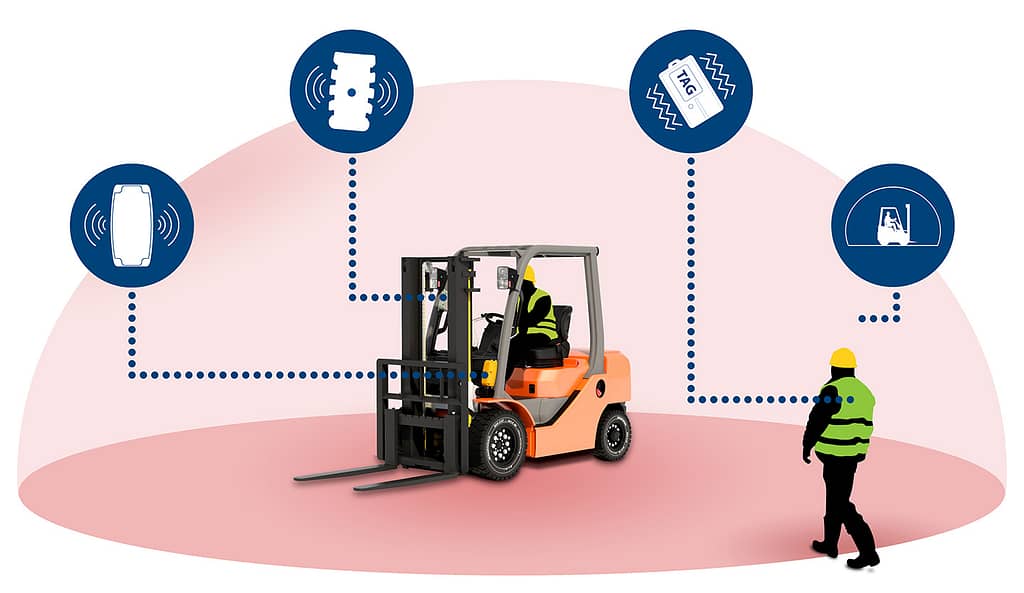

pedestrian-proximity-detection-diagram-image-for-zonesafe-vehicle-to-person-alert-solution-fitted-on-forklift-truck

How does a pedestrian proximity detection system work?

Vehicle-To-Person Alert creates a 360° detection zone around the vehicle. When a pedestrian wearing a ZoneSafe tag enters this zone, the system alerts both the operator and the pedestrian worker.

Vehicle operators are warned via an audible & visual alert from the in-cab control unit, whilst pedestrian workers are warned about the approaching vehicle via a burst of vibration from the tag.

The advantage of using ZoneSafe is that the system uses RFID technology. Therefore, it doesn’t require line of sight to detect tags worn by pedestrian workers. This ensures the system still detects a person even if they are working behind racking, walls, or stacks of product.

  • Detect pedestrian workers up to 10m away from the vehicle.
  • Full 360 degree pedestrian detection around the vehicle.
  • Pedestrian worker detection even if they can't be seen!
  • Two-way feedback - provides awareness to driver and pedestrian.
Talk to us about your site
PEDESTRIAN PROXIMITY DETECTION SYSTEM SPECIFICATIONS

Vehicle-to-Person Alert operational & integration details



RFID detection zone range 3 – 10 metres
Detection zone customisation Range is adjustable – smaller zones for tight indoor aisles or larger zones for open outdoor yards.
Over-alarming options To help eliminate alarm fatigue, masked zones can be set up using a ZoneSafe Q-Box, ideal for picking aisles, observation booths, offices and safe-zone exclusions.
Fleet compatibility ZoneSafe Vehicle-to-Person Alert fits any type of industrial vehicle and is compatible with diesel, LPG and electric models.

Complete 360 Degree
Pedestrian Detection

2-Way Feedback
and Warning Alerts

Detect Pedestrian Workers
Even When They Can't Be Seen

How does pedestrian proximity detection improve workplace safety?

Pedestrian proximity detection improves worksite safety by alerting vehicle operators and pedestrians when they get too close to each other. Using RFID technology, the system guarantees pedestrian worker detection, even if they can’t be seen – something other safety technologies are not able to replicate.

Providing two-way feedback, operators are warned of pedestrians via the in-cab control unit, while pedestrian workers are alerted to approaching vehicles via short bursts of vibration from the ZoneSafe tag.

The system significantly improves situational awareness around moving vehicles in the workplace and gives both drivers and pedestrians time to react before a dangerous interaction occurs, even if they cannot see each other.

Talk to us about your site
-zonesafe-vehicle-to-person-alert-components-and-pedestrian-proximity-detection-image

Vehicle-to-Person Alert – Pedestrian Proximity Detection Components

Pedestrian sensor

Vehicle-mounted antennas create a 360-degree detection zone around the vehicle, ensuring the machine can detect people wearing tags up to ten metres away around the vehicle.

Control unit

The in-cab control unit provides instant audible and visual warnings the moment a pedestrian wearing a tag enters the detection zone around the vehicle providing driver awareness.

VibraTag

Wearable tags make your workforce detectable around moving vehicles making vehicle drivers aware. Tags use bursts of vibration, alerting the wearer and providing them of all approaching vehicles.

Tag management for pedestrian
proximity detection

To ensure your Vehicle-to-Person Alert proximity warning system works at all times, tags require ongoing management. All vibratags are rechargeable and need to be monitored so they don’t run out of charge. Depending on usage, each tag lasts 2 to 3 months between charges and takes up to 2 hours to charge. Some customers top up daily so the tag never runs out, whilst others wait until a full recharge is required.

  • Tag boards - Help manage the process of providing tags for staff and visitors.
  • 5 bay chargers - Charge multiple tags at once ensuring tags are operational.
  • MyZoneSafe - Manage tag allocation, review detection logs, check battery status.
  • Tag checkers - Located at entrances / exits or in the office to check tag is charged.
Find out more
tag-management-diagram-showing-products-available-to-aid-tag-management-process

HSE Statistics for 2025/26 indicate 24 deaths from being struck by a moving vehicle. That’s a significant 71% increase from the previous year.

Read the full story here

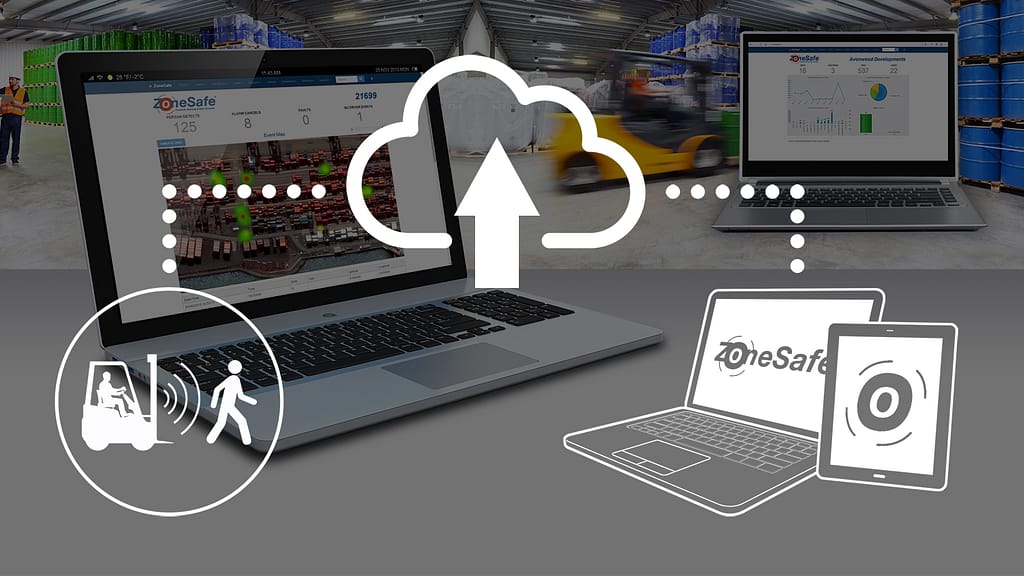

data-management-for-pedestrian-detection-system-image-with-icons

MyZoneSafe data management for worksite safety & continuous improvement

The ZoneSafe system turns raw detection data into powerful, actionable insights that drive continuous improvement in worksite safety. By tracking vehicle activity, pedestrian proximity detection and near misses, the data helps you spot trends and patterns, enabling a proactive approach to safety management.

This information helps organisations understand where near misses occur and identify opportunities to improve site safety.

Find out more

Why choose ZoneSafe for pedestrian proximity detection?

Choosing ZoneSafe means choosing a company with over 20 years’ experience in proximity-warning solutions for industrial worksite safety. We work together with you to achieve the best results. Systems can be tailored to your environment, and we always ensure installation causes minimal downtime in your busy schedule.

We focus on multi-site scalability and seamless retrofitting across mixed MHE fleets. When we leave your site, support continues with predetermined maintenance checks and servicing throughout the life of your proximity warning system, should you require it. We work with you to support you the best we can so you can:

  • Protect your workforce by helping to prevent injury and collision risk.
  • Protect your organisation’s reputation to workplace safety.
  • Demonstrate practicable safety measures to support compliance.
  • Support business continuity by reducing the risk of incidents that disrupt operations.
Download Vehicle-To-Person Alert Now
reach-stacker-and-excavator-pedestrian-proximity-detection-images
PROOF – TRUST – CREDIBILITY – RELATABILITY

Clients who use ZoneSafe proximity warning systems:

Contact us about forklift pedestrian proximity detection

Some of the clients we have worked with:

Featured case studies

View case studies
Case Study: Eurovia – Plant and People Interface in Asphalt Production

Eurovia Roadstone, one of the world’s largest asphalt producers installed a ZoneSafe proximity safety solution in Dagenham.

Read full case study

Case Study: Qube – Increasing Visibility for Heavy Machinery

Qube, in Hamilton Australia, is a logistics and infrastructure company providing logistics services in both import and export cargo supply chains.

Read full case study

Frequently asked questions

What is the ZoneSafe Vehicle-to-Pedestrian (V2P) system?

How does forklift pedestrian proximity detection prevent accidents?

How does forklift pedestrian proximity detection manage risks in blind spots and through obstructions?

What is the detection range for the ZoneSafe V2P system?

What does the pedestrian wear for the V2P system?

Which vehicles can ZoneSafe V2P be fitted to?

How can I determine which proximity system components I need?

How do I manage tags effectively across my site?
